Product Details
Features
• 16 channels (more when combined with external module)
• 64 mixers, 9 flight modes
• 16 custom curves with 3-17 points each, 32 logic switches
• Self-test of the transmitter antenna
• 60 Model memory (expandable via a SD card)
• Audio Speech outputs
• USB and SD card slot for unlimited memory, and firmware upgrades, sound editing.
• Long range system capable of up to 3 times the range of current systems
• Quad bearing gimbals that are silky smooth
• State-of-the-art open source software (open TX)
• Super low latency for ultra-quick response (9ms)
• Large adjustable backlit blue to white LCD display
• Real-time data logging
• Receiver lock (program locked to aircraft)
• JR Style module bay for additional RF modules
• Processor: STM32 ARM Cortex M3 60MHz
• New 2000mah battery
• Included X8R receiver
• Haptic Vibration Feedback Command Feature
Specifications

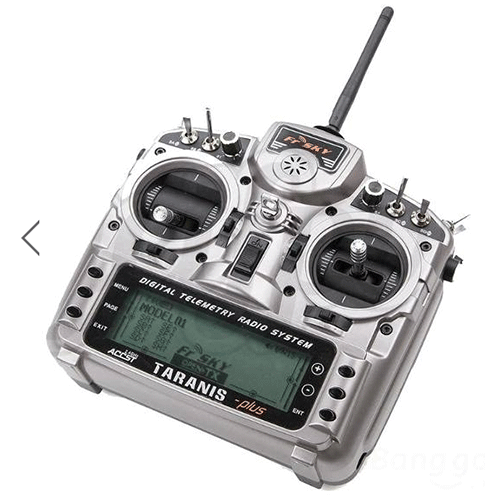

Model name: Taranis X9D
Number of Channels: up to 16
Operating Voltage Range:6-15v (2s, 3s Lipos are acceptable)
Operating Current: 260mA maximum (both RF module and backlit are on)
Operating Temperature: -10~60C
Backlit LCD Screen: 212*64 Monochrome
Model Memories: 60 (expandable by SD card)
Compatibility: FrSky X series, D series and V8-II series receivers
stick mode: Mode 2 (Left hand throttle)
Includes
Taranis X9D ACCST 2.4GHz Transmitter (Mode 2 version)
New 2000mah Battery (Charger not included)
Neck Strap
